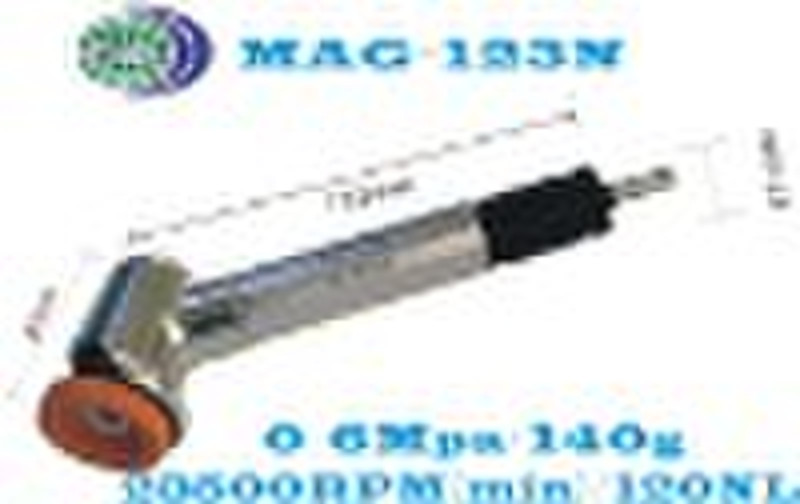

Micro Air Grinder(MAG-123N)/Air Tools

Mirco Air Grinder(MAG-123N)/Air Tools Technical parameter: Max.Free Speed : 23,500RPM Collet Size: 3MM(1/8") Angle:120° Air Pressure Supply: 0.6MPA Size:50mm*17mm*123mm The Amout Of Air Consumption:120NL/min Weight: 14oG Package of tools:1)MAG-123N:one piece; 2)adhesive sandpaper:eight pieces;3)sub-tie-in:one piece; 4)over hose:0.4meter;5)air hose: 1.2 meter; 6)hose band:two pieces;7)cup wheel: two pieces; 8)spanner:one piece;9)rubber disc holder:one pieceThe characters and application of products Yuetai Air Rotary Grinders adopts precision and durable components. It has many specialties as follows: light and pen shaped design, small volume, high speed of rotation, low noise, large torque, low consumption of gas, light and stable. And its operation is very easy, convenient and fast, which is applied in varieties moulds, hardware products, glass, crafts, accessories, circuit board extensively such as shoe mould, wheel mould, pen mould, household mould, etc. In a word, it applies in what need to be grinded, rubbed, carved and mirror polished.Dissection of subject:01.rotor 03.middle crustl 05.blade 06.small axis circle 07.bearing box 08.small bearing(motor bearing) 09.121N-head 10.122N-head 11.123N-head 12.093N-head 13.3BSN-head 14.small filling piece 15.o-ring circle(big) 16.o-ringcircle(small) 17.switch 18.hose band 19.air hose 20.sub-tie-in 21.over hose 24.screw cap 25.front shell 26.big bearing 27.big filling piece 28.rotating coat 29.gum cover 30.chuck 34.set pin(bolt) 35.spanner 36.intake shaft 37.rotating joint Package of tools Maintenance of tools 1.Frequently addoil to tools(pneumatic oil or decatizing oil). 2. Air compressorshould beinstalled oil-water separator,and we need always clean its sewage. 3.Special attention :Its fever heat is normal when the tool operate without any load. Otherwise, operation with load will get cooling gradually. 4.Ask professional staff to maintain the tools.4.Ask professional staff to maintain the tools
